有效过板尺寸 |
250~820mm |
清洁板厚 |
0.04~3.2MM(薄) |
传送速度 |
1 ~8m/min |
传送方向 |
客户指定 |
输送面高度 |
客户指定 |
电压 |
AC 220V单相 |
气压 |
0.2~0.6Mpa, φ6气管 |
额定功率 |
2Kw(含集尘箱) |
外观尺寸 |
350(W)*1170 (D)*1152 (H) mm |

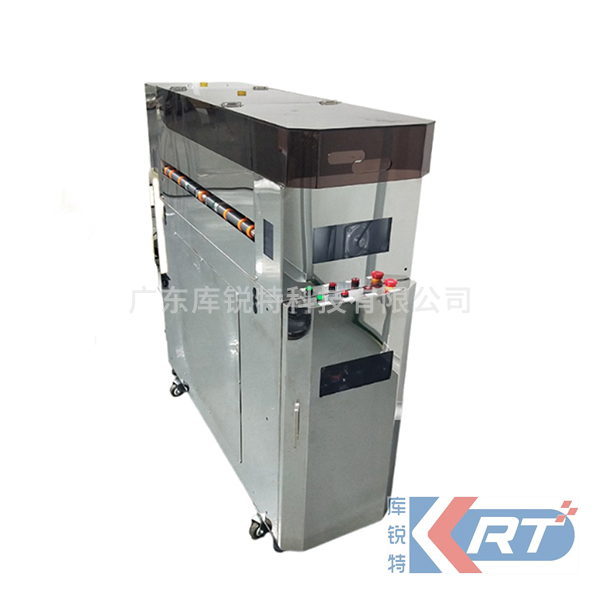

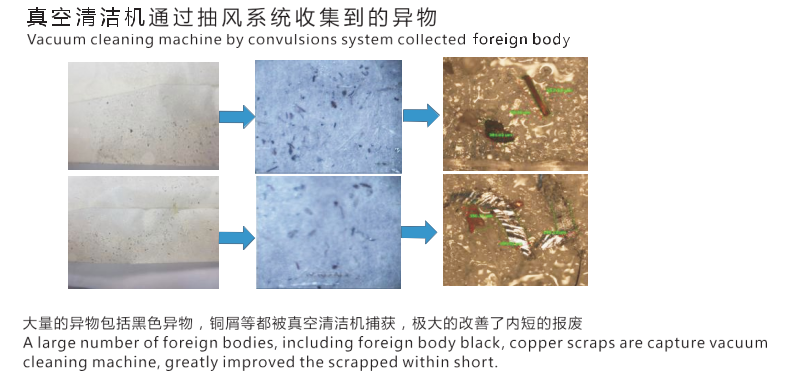

有效去除线路、板面、PCB板上异物、解决内短，提高良率真空清洁机。是在负压真空的状态下，通过毛刷把板材上的的异物刷落，再经过集尘过滤器吸收毛刷及产品表面的异物，以达到清洁板材表面尘埃的目的。设备内部配有除静电装置，通过除静电处理的板材进行除尘会顺畅，也不易再吸附异物。
Effectively remove foreign objects from circuits, board surfaces, and PCB boards, solve internal short circuits, and improve the yield of vacuum cleaning machines. It is achieved by using a brush to remove foreign objects from the board under negative pressure and vacuum, and then passing them through a dust collection filter to absorb the foreign objects on the brush and product surface, in order to clean the dust on the board surface. The equipment is equipped with a static electricity removal device inside, and the dust removal process on the treated board will be smooth and less likely to adsorb foreign objects.
