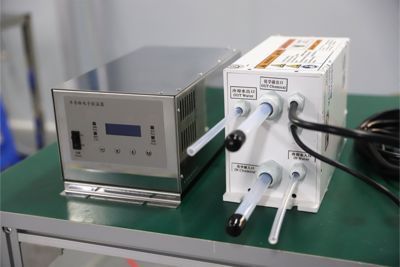

产品介绍
帕尔贴电子温控器是一款专为化学药液温度控制而设计的高效温控设备。它采用了氟树脂材料作为热交换器，能够直接对化学药液进行温控，确保液体在设定的温度范围内稳定运行。
1.材料优势：使用氟树脂材料，确保了与各种化学药液的兼容性。
2.高精度温控：设备的温度稳定性达到±0.2度，确保化学反应的准确性。
3.宽广的温度调节范围：温度设定范围从20度到50度，满足不同需求。
4.强大的冷却能力：根据需求，提供300W、450W、750W的不同冷却能力选项。
5.增强安全性：配备漏液检测功能，确保工作环境的安全。
6.耐压能力：可以承受高达0.40MPa的压力。
7.化学稳定性：能够耐受高达49%的HF。
8.通讯功能：配备RS485通讯接口，方便与其他设备或系统集成。
Product Introduction：
The Peltier Paste Electronic Temperature Controller is an efficient temperature control device designed specifically for the control of chemical solution temperatures. It utilizes fluororesin material as a heat exchanger, allowing direct temperature control of chemical solutions to ensure stable operation within the set temperature range.
1.Material Advantages: The use of fluororesin material ensures compatibility with various chemical solutions.
2.High-Precision Temperature Control: The temperature stability of the equipment reaches ±0.2 degrees, ensuring the accuracy of chemical reactions.
3.Wide Temperature Adjustment Range: The temperature setting range is from 20 degrees to 50 degrees, meeting different requirements.
4.Powerful Cooling Capacity: Different cooling capacity options of 300W, 450W, and 750W are provided according to requirements.
5.Enhanced Safety: Equipped with leakage detection function to ensure the safety of the working environment.
6.Pressure Resistance: Capable of withstanding pressures of up to 0.40MPa.
7.Chemical Stability: Can withstand up to 49% HF.
8.Communication Function: Equipped with RS485 communication interface for easy integration with other devices or systems.
帕尔贴电子控温器在许多领域中都有广泛的应用，包括但不限于以下几个方面：
1.化学研究和实验室应用：帕尔贴电子控温器非常适用于化学研究和实验室应用，可以用于控制试剂的温度，确保实验的精确性和可重复性。
2.半导体制造：在半导体工业中，温度控制至关重要。帕尔贴电子控温器可用于半导体设备的温度控制，确保生产过程的稳定性和质量。
3.生物技术：在生物技术研究和生产中，需要精确的温度控制以培养微生物或进行酶反应。帕尔贴电子控温器能够满足这些需求。
4.医疗设备：用于制造或测试医疗设备的过程中，需要可靠的温度控制。这些控温器可用于确保医疗设备的质量和性能。
5.工业生产：在各种工业过程中，如化工、食品生产和制药，需要对温度进行精确控制。帕尔贴电子控温器可满足工业生产的高要求。
Main Applications
Peltier Paste Electronic Temperature Controllers have extensive applications in various fields, including but not limited to the following areas:
1.Chemical Research and Laboratory Applications: Peltier Paste Electronic Temperature Controllers are highly suitable for chemical research and laboratory applications. They can be used to control the temperature of reagents, ensuring the accuracy and repeatability of experiments.
2.Semiconductor Manufacturing: Temperature control is crucial in the semiconductor industry. Peltier Paste Electronic Temperature Controllers can be used for temperature control in semiconductor equipment, ensuring the stability and quality of the production process.
3.Biotechnology: In biotechnology research and production, precise temperature control is needed for cultivating microorganisms or conducting enzyme reactions. Peltier Paste Electronic Temperature Controllers can meet these requirements.
4.Medical Devices: Reliable temperature control is required in the manufacturing or testing processes of medical devices. These temperature controllers can be used to ensure the quality and performance of medical equipment.
5.Industrial Production: In various industrial processes such as chemical manufacturing, food production, and pharmaceuticals, precise temperature control is essential. Peltier Paste Electronic Temperature Controllers can meet the high demands of industrial production.
|
热交换器单独型号 |
KRT-EX-P-300W-A |
KRT-EX-P-500W-A |
KRT-EX-P-750W-A |
|
冷却能力(水) |
300W |
500W |
750W |
|
加热能力(水) |
1000W |
1500W |
2500W |
|
冷却/加热方式 |
热模块元件(电子冷热元件、热模块) |
|||
冷却方式 |
水冷 |
|||
使用温度范围 |
10.0~50.0℃(但随循环液的种类有不同) |
|||
适合流体 |
脱离子水(纯水)、氢氟酸、氨双氧水等 |
|||
循环液 |
接触液体部材质 |
PFA,玻碳 |
||
使用压力 |
0(大气压)~0.35MPa |
|||
接管口径(PFA管子) |
3/4"×5/8" |
|||
流量 |
7-17L/min |
|||
冷却水 |
温度 |
10~30℃(但未结露) |
||
接触液体部材质 |
FEP、SUS304、SUS316 |
|||
最高使用压力 |
0.5MPa |
|||
连接口径 |
IN/OUT: FEP管子3/8"×1/4" |
|||
流量 |
5~15L/min |
|||
环境 |
温度: 10~35℃、温度: 35~80%RH(但未结露) |
|||
外形尺寸 |
W148×D320×H208 |
W148×D320×H208 |
W286×D340×H208 |
|
质量 |
约15kg/22Kg |
|||
温度控制器单独型号> |
KRT-EX-P-300/500/750W-B |
|
通信功能 |
RS-485(选项) |
|
控制方式 |
冷却/加热自动切换PID控制 |
|
设定温度范围 |
10.0~50.0℃(但未结露) |
|
温度稳定性 |
±0.1℃以内 |
|
温度传感器 |
测温阻抗体Pt100Ω、3导线式、等级A、2mA(内部控制传感器、外部传感器相同) 外部传感器客户准备。 |
|
环境 |
湿度: 10~35℃、湿度: 35~80%RH(未结露) |
|
电源规格 |
电源 Power supply |
单相AC180~242V 50/60Hz |
额定电流 |
11A |
|
外形尺寸 |
W212×D405×H178.5 |
|

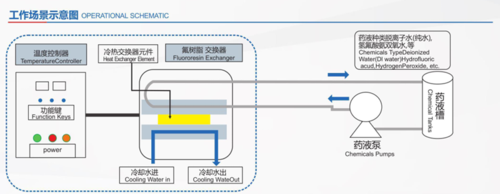

1.直接温控化学药液： 帕尔贴电子控温器采用氟树脂材料作为热交换器，实现了对化学药液的直接温度控制，确保在化学实验和生产过程中的精确温度管理。
2.带漏液功能检测： 配备了漏液功能检测，及时发现漏液情况，确保操作环境的安全性。
1.Direct Temperature Control of Chemical Solutions: The Peltier Paste Electronic Temperature Controller utilizes fluororesin material as a heat exchanger, enabling direct temperature control of chemical solutions to ensure precise temperature management during chemical experiments and production processes.
2.Leakage Detection Function: Equipped with a leakage detection function to promptly identify any leakage, ensuring the safety of the operating environment.
1.帕尔贴元件： 采用帕尔贴元件（热模块、电子冷却元件），这些板状元件具有P型半导体和N型半导体的交替排列。通过切换电流方向，实现高速的加热和冷却，确保温度控制的快速响应和高精度。
2.PID控制： 电子控温器采用冷却和加热自动切换的PID控制方式，以确保温度稳定性在±0.1℃以内。
1. Peltier Elements: Employing Peltier elements (thermal modules, electronic cooling elements), these plate-shaped elements have alternating arrangements of P-type and N-type semiconductors. By switching the direction of the electric current, rapid heating and cooling are achieved, ensuring a quick response and high precision in temperature control.
2.PID Control: The electronic temperature controller adopts a PID control method with automatic switching between cooling and heating to ensure temperature stability within ±0.1°C.
1.冷却能力选择： 提供了多种不同冷却能力的型号，包括300W、500W和750W，以满足不同应用需求，最大化性能选择。
2.通信接口选项： 外带通讯接口作为选项，可以轻松集成到自动化系统中，实现远程监控和控制。
3.稳定的温度控制： 温度稳定性在±0.1℃以内，确保实验和生产过程中的高精度温度管理，最大程度减少温度波动。
1.Cooling Capacity Options: Various models with different cooling capacities, including 300W, 500W, and 750W, are provided to meet diverse application needs, maximizing performance choices.
2.Communication Interface Options: Equipped with external communication interfaces as options, facilitating seamless integration into automation systems for remote monitoring and control.
3.Stable Temperature Control: Temperature stability within ±0.1°C ensures high-precision temperature management during experiments and production processes, minimizing temperature fluctuations to the maximum extent.
1.化学液体直接控温： 通过使用氟树脂材料，实现了对化学液体的直接温控，消除了传统加热方式可能引起的污染和变质风险。
2.快速响应加热和冷却： 帕尔贴元件的高速加热和冷却切换使得这款控温器在实验和生产中能够迅速适应温度变化，确保了高效率的工作。
3.漏液检测与安全性： 配备了漏液检测功能，能够及时发现漏液情况，提高了操作环境的安全性，降低了潜在的风险。
1.Direct Temperature Control of Chemical Liquids: By using fluororesin material, direct temperature control of chemical liquids is achieved, eliminating the potential contamination and deterioration risks associated with traditional heating methods.
2.Rapid Response Heating and Cooling: The high-speed heating and cooling switching of Peltier elements allow this temperature controller to quickly adapt to temperature changes during experiments and production, ensuring efficient operation.
3.Leakage Detection and Safety: Equipped with a leakage detection function, it can promptly identify any leakage, enhancing the safety of the operating environment and reducing potential risks.
帕尔贴电子控温器是一款高性能、多功能的温度控制设备，适用于多个领域，能够确保精确的温度控制，提高生产效率和产品质量。
无论是在实验室研究还是工业生产中，都可以信赖帕尔贴电子控温器来满足温度控制的需求。
The Peltier Paste Electronic Temperature Controller is a high-performance, multifunctional temperature control device suitable for various fields. It ensures precise temperature control, enhancing production efficiency and product quality.
Whether in laboratory research or industrial production, the Peltier Paste Electronic Temperature Controller can be relied upon to meet temperature control requirements.
