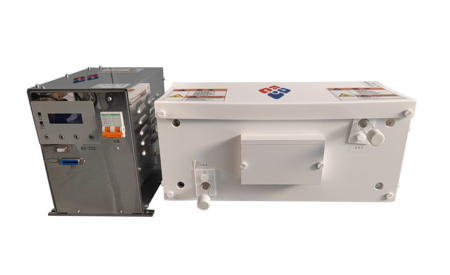

一：石英在线加热器的特点：
1:洁净
采用间接加热的方式
2:纯度高:
罐体采用进口GE高纯石英材料
3:耐腐蚀
所有接触药液材料为PFA管路/高纯度石英罐
4:紧凑:
直接安装在管道上满足最小的安装位置
5:安全
箱体材料采用劳士领品牌FM防火认证PVC材料。
P1： Characteristics of quartz online heater:
1: Clean
Using indirect heating method
2: High purity:
The tank body is made of imported GE high-purity quartz material
3: Corrosion resistance
All materials in contact with the medication are PFA tubing/high-purity quartz tanks
4: Compact:
Directly installed on the pipeline to meet the minimum installation position
5: Security
The box material is made of PVC material with FM fireproof certification from the Laoshiling brand.

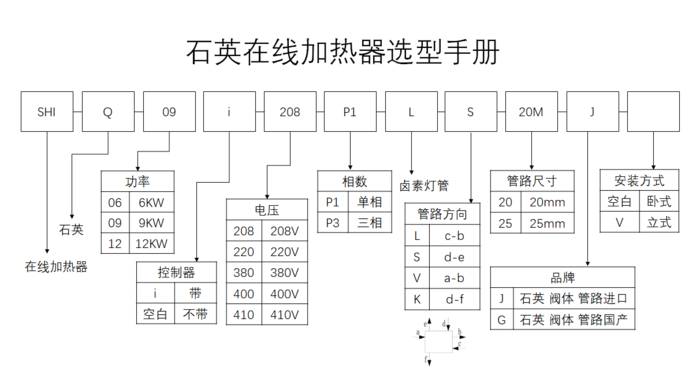

半导体高纯石英在线加热器选型表 | ||||
型号 |
电压 |
功率 |
额定电流 |
外观尺寸 |
KRT-H-Z SD-3P 208-4.5K-A |
200-208V(AC3p))50/60Hz. |
4.5KW |
12-12.5A |
长470mm*宽190MM*高200MM |
KRT-H-Z SD-1P 220-4.5K-A |
200-240V(AC1o)50/60Hz |
4.5KW |
17.2-18.8A |
长470mm*宽190MM*高200MM |
KRT-H-Z SD-1P 208-6.0K-A |
200-240V(AC1p)50/60Hz |
6.0KW |
25-30A |
长485mm*宽200MM*高210MM |
KRT-H-Z SD-3P 208-6.0K-A |
200-208V(AC3m)50/60Hz. |
6.0KW |
16-16.7A |
长485mm*宽200MM |
*高210MM |
||||
KRT-H-Z SD-3P 380-6.0K-A |
380-400V(AC3o)50/60Hz. |
6.0KW |
8.2-8.7A |
长485mm*宽200MM*高210MM |
KRT-H-Z SD-3P 208-9.0K-A |
200-208V |
9.0KW |
24-24.9A |
长590mm*宽200MM*高210MM |
(AC3v)50/60Hz. |
||||
KRT-H-Z SD-3P 380-9.0K-A |
380-400V(AC3p)50/60Hz. |
9.0KW |
12.4-13A |
长590mm*宽200MM |
*高210MM |
||||
1:采用卤素灯管的热辐射进行加热。
2:卤素灯管的规格为:
功率：1.5KW,2KW,3KW
电压：208V，220V
